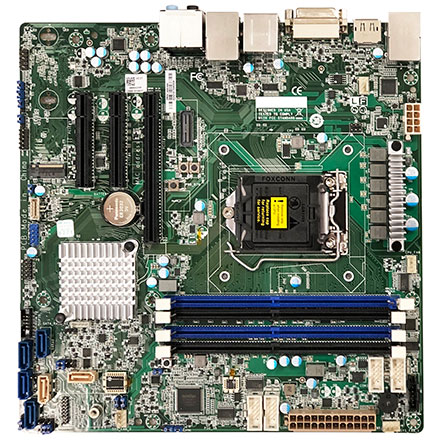

Mitac PH10FEU-Q370 Micro-ATX (Intel Q370, LGA1151)

Mitac PH10FEU-Q370 Micro-ATX (Intel Q370, LGA1151)

  • Intel® Coffee Lake Core i7/i5/i3/Pentium/Celeron LGA1151 processors
  • Intel® Q370 / H310 Chipset
  • Intel® vPro technology supported
  • 4 x DDR4 DIMM, support up to 64GB
  • Support triple display for 2 x DisplayPort and DVI
  • Support PCIe X16 (Gen 3) slot, 2 x PCIe X4 (Gen 3) slot, and M.2 slot
  • 6 x SATAIII (support RAID 0, 1, 5, 10 w/ Q370)
  • 2 x Intel® Gigabit Ethernet
  • 4 x USB 2.0, 2 x USB 3.0, 4 x USB3.1 (Gen 2), 4 x COM
  • ATX power input


Share

239.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
PH10FEU (PH10FEU) Specifications
MECHANICALFORM FACTORMicro-ATX: 9.6” x 9.6” (244 mm x 244 mm)
SYSTEMPROCESSOR9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 95W, Core i9 8-core TDP Max 35W
CHIPSETIntel® Q370 (Support RAID 0 / 1 / 5 / 10) / Intel® H310
SYSTEM MEMORYDDR4 2666MHz / 4 x 288-pin U-DIMM / Max. 64 GB (Non-ECC)
GRAPHICSIntel® HD Graphics
ETHERNETIntel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
I/O CHIPSETNuvoton NCT6683D
AUDIORealtek® ALC892
TPMNuvoton NPCT750AAAYX TPM2.0 (Optional)
EXPANSION SLOTPCIe 3.0 X16 slot / 2 x PCIe 2.0 X8 slot (X4 Lanes) for Q370 / PCIe 2.0 X8 slot (X4 Lanes) for H310 / M.2 2242 / 2280 M key (PCIe)
BIOS256 Mbit SPI
H/W MONITORTemperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER1~255 steps by software program
SMART FAN CONTROLCPU Fan / System Fan
GRAPHICSVGA-
DVIUp to 4K (4096 x 2160) @30 Hz
HDMI-
DISPLAYPORTUp to 4K (4096 x 2304) @60 Hz
LVDS-
eDP (Option)-
REAR I/OUSB4 x USB 3.1 Gen 2 (Q370) / 2 x USB 2.0 (Q370) / 4 x USB 2.0 (H310) / 2 x USB 3.0 (H310)
DISPLAY I/O2 x DisplayPort 1.2 / 1 x DVI-D
AUDIO I/O1 x 6-stack Audio Jack
LAN I/O2 x RJ-45
SERIAL PORT-
PS/2 PORT-
OTHERS-
INTERNAL CONNECTORSSTORAGE6 x SATAIII / 4 x SATAIII (H310)
USB2 x USB3.0 (Q370) / 2 x USB 2.0
DISPLAY I/O-
AUDIO I/O-
SERIAL PORT4 x RS232
PARALLEL PORT-
GPIO-
FAN1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER1 x 8-pin ATX Power Connector / 1 x 24-pin ATX Power Connector / 1 x AT / ATX Mode Select Jumper
OTHERS 1 x Chassis Intrusion / 1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out)
POWER REQUIREMENTPOWER INPUTATX 8-pin + ATX 24-pin
ENVIRONMENTALOPERATING TEMPERATURE0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE-20 ~ 70°C (-4 ~158°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Motherboard / 1 x 50 cm SATA Cable / 1 x I/O Bracket
