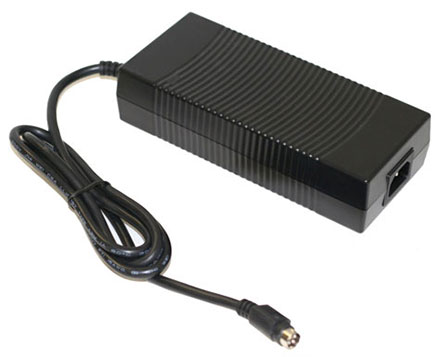

AC Power adapter (12V, 16A, 192W)

AC Power adapter (12V, 16A, 192W)
  • 100/240V
  • 192W !
  • Model: STD-12160
  • FANLESS !

For connecting PicoPSU-150-XT/PicoPSU-160-XT (additional Mini-Fit-JR adapter cable needed) to the standard 230V house power net.
192W max.


- Dimensions: 183 x 81 x 42 mm
- Connector : 4 pin Mini DIN
- Efficiency : >=87%
- CEC, Energy Star Level V & ErP Stage 2 & NRCan
- No Load Power Consumption Less Than 0.5W


PicoPSU-adapter cable 4 pin Mini DIN to Mini-Fit-JR not included.
Power cord (cold devices connector) not included.



Share

64.95 EUR
incl. 19% VAT, plus shipping
In Stock (552 pcs)

Add to cart
Model Output Voltage Output Current Watt
STD-12160 12.0V 16.0A 192W
Input
Voltage 100-240 VAC
Line Frequency 50-60Hz
Current 2.8A Max.
Protection Internal Primary Current Fuse
Configuration IEC60320 / C14
Output
Load Regulation ± 5% (Typical)
Ripple 3~5% Vp-p Max. for Output Voltage @ Full Load
Transient Response 0.5mS for 50% Load Change Typical
Holdup Time 10mS @ Full Load
Protection Short Circuit Protection/ Over Voltage Protection/ Over Current
Protection/Over Temperature Protection
DC Cord UL2464 / 16AWG
Ferrite Core No (Optional)
Safety Approvals
CB / UL / cUL / FCC / GS / CE / PSE / BSMI / CCC / RCM
Electrical
Topology LLC
Dielectric Withstand 3,000 VAC Primary – Secondary
Leakage Current 3.5mA @ 3 Pin
Efficiency Engergy Star Level V, ErP Stage 2 & NRCan Certified
EMI Conduction&Radiation; Compliance to EN55022 Class B
Harmonic Current Compliance to EN61000-3-2,3
EMS Immunity Compliance to EN61000-4-2,3,4,5,6,8,11
MTBF 300,000 Calculated Hours at 25°C, by Telcordia SR-332
Environmental
Operaturing Temperature 0 to +40°C
Storage Temperature -20 to +80°C
Relative Humidity Operating: 20 to 80% RH
Storage: 10 to 90% RH
Cooling Natural Convection Cooling
Mechanical
Case Dimension L183 x W81 x H42 (mm)
Weight 850g (Ref.)
Data sheet Download (PDF)
Data sheet Print view
