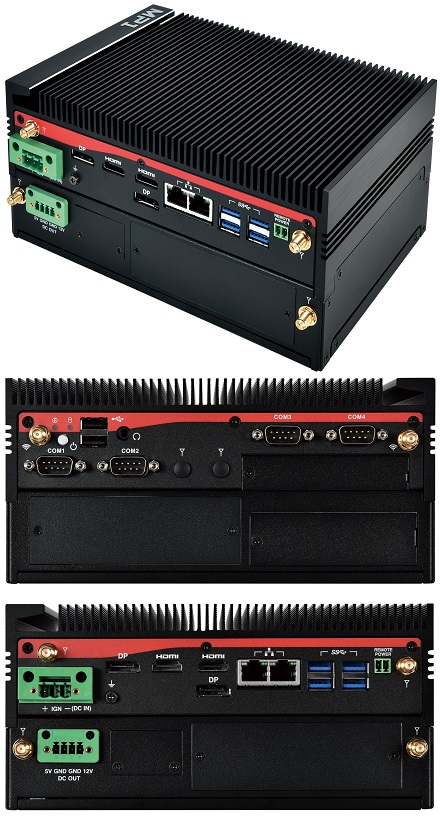

Mitac MP1-11TGS-D-1145G7E (Intel i5-1145G7E, 2x LAN, 2x HotSwap) [FANLESS]

Mitac MP1-11TGS-D-1145G7E (Intel i5-1145G7E, 2x LAN, 2x HotSwap) <b>[FANLESS]</b>
3D 360° View
  • Intel i5 Tiger Lake-UP3 !
  • 2x SATA HotSwap !
  • Expandable !
  • 4x RS232 !

  • Intel® i5-1145G7E Processor
  • Outstanding graphic computing capability with Integrated Intel®Iris Xe graphics
  • Intel® vPro technology support
  • 1 x DDR4 SO-DIMM and support up to 32GB
  • Support Quadruple display for HDMI, and DisplayPort
  • 2 x Hot Swappable SSD/HDD slot
  • 2 x Intel® Gigabit Ethernet (Option: additional 2 x LAN)
  • 2 x USB 2.0, 4 x USB 3.1 Gen2 and 4 x COM
  • 12V~36V wide voltage power input
  • Expansion Options
  • 4-pin Terminal Block DC-out (max 1A Output)
  • Extreme Shock & Vibration Resistance




Share

1379.00 EUR
incl. 19% VAT, plus shipping
In Stock (10 pcs)
Add to cart
SYSTEMCPU11th Gen Tiger Lake-UP3 Intel® Core™ i ULV Processor i3-1115G4E
/ (Dual Core, 6MB Cache, up to 3.90 GHz) / option: 11th Gen Tiger Lake-UP3 Celeron 6305E / i5-1145G7E / i7-1185G7E
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR4 3200 MHz
/ 1 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICSIntel® Iris Xe Graphics
DISPLAY INTERFACEDisplayPort 1.4 / HDMI 1.4
STORAGE SLOT2 x Hot Swappable 2.5 HDD / SSD (Maximum 9.5mm height)
/ 1 x M.2 B Key 2280/2260/2242 Slot / 1 x mSATA
ETHERNETIntel® I219-LM Giga LAN / Intel® I225-LM 2.5GbE LAN / Additional 2 x Intel® I210-IT Giga LAN for Options
I/O CHIPSETNuvoton NCT6126D(eSPI)
AUDIORealtek® ALC256
TPMNuvoton NPCT750AABYX TPM2.0
EXPANSION SLOT2 x Xpansion slot (PoE/LAN/COM/DIO/IGN/CANBus Options)
/ Wireless: 1 x M.2 2230 E key (PCIeX1, USB2.0)
/ Storage/LTE/5G Slot: 1 x M.2 2280/2260/2242/3042/3052 B Key (USB2.0/*PCIeX1/SATAIII) *Not support M.2 M Key NVMe SSD
/ **5G card support is by BOM option. Please check with sales about the M.2 B Key 3052 5G card spec if you have any request
/ 1 x Mini PCIe Full size (USB2.0 / SATAIII / PCIeX1)
INDICATORPower LED / HDD LED
FRONT I/O2 x SMA Antenna (Optional for WiFi/LTE function) / 3 x RS232 / 2 x Hot Swappable 2.5” SSD/HDD slot (Maximum 9.5mm height)
/ 1 x Audio Combo Jack (Mic-in and Line-out) / 2 x USB 2.0
/ 1 x RS232 / 422 / 485
/ HDD LED
/ Power Button w/ Power Indicator
REAR I/O2 x DisplayPort 1.4
/ 1 x 4-pin Terminal Block Power Output (12V/5V)
/ 2 x HDMI 1.4
/ 2 x RJ-45
/ 4 x USB 3.2 Gen 2 (10 Gbps)
/ 1 x 3-pin Terminal Block Power Input
/ 1 x 2-pin Terminal Block Remote Power on / off
/ 4 x SMA Antenna (Optional for WiFi/LTE function)
H/W MONITORTemperature Monitor / Voltage Monitor
WATCHDOG TIMER1~255 steps by software program
EDGE AI ENGINE (Optional)Hailo-8™ M.2 2242 B+M key (Model Name:M2B-01HAI-MP1D)
POWER REQUIREMENTPOWER INPUT12~36V Wide Range DC-in Input w/ 3-pin Terminal Block Connectivity / *Optional Xpansion Module for Power Ignition
POWER ADAPTERDC24V / 5A / AC / DC / 120W adapter (For AC SKU)
MECHANICALTHERMAL DESIGNFanless
MOUNTINGWallmount / Side Mount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional)
DIMENSIONS (W X D X H)8.3” x 5.9” x 4” (210 x 150 x 103 mm)
WEIGHT3.2kg
MATERIALTop cover: Aluminum Alloy / Bezel and chassis: Steel
ENVIRONMENTALOPERATING TEMPERATURE15W TDP: -40 ~ 70°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM) / 28W TDP: -40 ~ 60°C with 0.7m/s Air Flow (w/ Extended Temp. SSD/mSATA/RAM)
STORAGE TEMPERATURE-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY10% ~ 95% R/H (Non-condensing)
VIBRATION RESISTANCEOperating: 5Hz~500Hz / 3Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
SHOCK RESISTANCEOperating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CERTIFICATIONCE / FCC Class B
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets
/ 1 x 3 pin Terminal Block Power Connector / 1 x 4 pin Terminal Block Male Connector
/ 1 x 2 pin Terminal Block Male Connector
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Mitac Edge AI Guide Download (PDF)
