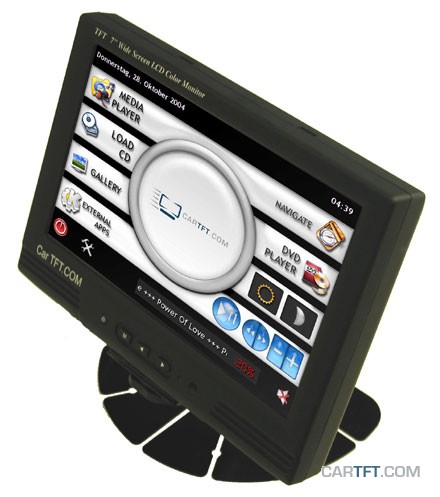

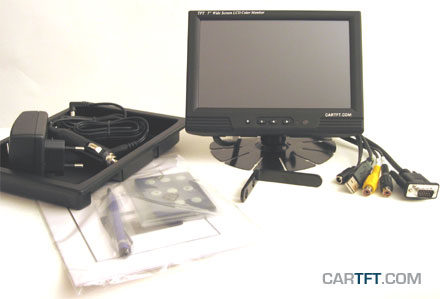

MM400 - VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Audio [LED-Backlight]
New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.
A bargain display, but with many features :
- Long All-In-One connector-cable
- High brightness (400 nits)
- Many accessoiries
- Rear camera input
- Touch
[more]
| Front |
|
| Rear |
|
| Side |
|
| LCD Size | 7" |
| Aspect Ratio | 16:9 |
| VGA resolutions | 640x480-1920x1200 |
| Native resolution | 800x480 |
| Dot resolution | 2400x480 |
| Brightness | 400 |
| VGA Input | D-SUB 15 |
| Video Input | 3x PAL/NTSC (RCA) |
| Audio Input | 2x RCA |
| Touchscreen | USB |
| Case color | black |
| Power Input | 12-24VDC |
| Power Consumption | 9W |
| Case size | 178 x 130 x 27 mm |
| Visible area | 154 x 93 mm |
| Certificates | CE, E1 |
| Style | On-Dash |
| no | Adjustable backlight |
| yes | Auto Power-On |
| no | Picture In Picture |
| yes | IR Remote |
| yes | Headrest mount |
| yes | TS pencil |
| no | Earphone |
| no | Adjustable video aspect |
| no | Mirrorable video |
| yes | Reverse camera input |
New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.
A bargain display, but with many features :
- Long All-In-One connector-cable
- High brightness (400 nits)
- Many accessoiries
- Rear camera input
- Touchscreen-pencil integrated in rear enclosure
Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz
Please login for creating product ratings.
from BrianMay am 30.10.2007
| See all my comments
from zaptorrent am 29.11.2011
|
from RockNLol am 16.10.2011
|
| See all my comments
from WeberEngineering am 16.07.2011
|
1
2
3
4
5
6
7
8
9
10
11
12
13
Forward
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 62 ratings |
from BrianMay am 30.10.2007
| See all my comments
not the best looks, but great build quality and great screen and touchscreen quality. a must buy in the 7" category
Update from :2012-01-29 22:42
best 7" screen!it's been around for years and is still a great choice when it comes to price/reliability.great image quality a readability at an unbeatable price.higly recommended
from zaptorrent am 29.11.2011
|
This is the only screen of this type I have tried and I am very pleased with having bought this one. The screen is very responsive and it runs without problems from a USB-hub as well. Even the sound is above expectation when used for navigation (although I obviously wouldn't use it for entertainment).
I'm however not mad about the AllInOne-cable for my setup. I have the carputer in the trunk and the screen at the front. I need power and USB to be plugged in at the front and VGA going to my trunk but with the AIO-cable I have to run everything to the trunk then run new cables back to the screen in front. Depending on your setup that could be a minor inconvenience. Aside from that I highly recomend this product.
from RockNLol am 16.10.2011
|
| See all my comments
Bin höchst zufrieden mit diesem Touchscreen. Habe ihn in meinem Opel Corsa eingebaut, wo sehr wenig Platz im Armaturenbrett ist, wobei mir die kompakte Kabellösung (ein Kabel für alle Anschlüsse) und der Einbaurahmen sehr geholfen haben. Das Bild ist sehr gut, läuft mit der Intel GMA950 meines Car-PCs einwandfrei. Den Touchscreentreiber musste ich zwar manuell herunterladen und installieren, dann funktioniert er aber wunderbar.
from WeberEngineering am 16.07.2011
|
Die Ware war/ist so wie beschrieben bei mir angekommen. Schnelle und vor allem auch pünktliche Lieferung. Des weiteren gibt es noch eine Sende-Nachverfolgung (nicht überall). Alles fein sauber und sicher verpackt. CARTFT kann man nur empfehlen!!!! Macht weiter so!
